When it comes to installing a thermostat in your home, understanding the wiring diagram is crucial. A 2 wire thermostat wiring diagram is a simple guide that helps you connect your thermostat correctly to your heating and cooling system. By following this diagram, you can ensure that your thermostat functions properly and efficiently.
It is important to note that a 2 wire thermostat is typically used for heating-only systems, such as baseboard heaters or radiant floor heating. These systems do not require a separate cooling function, which is why a 2 wire thermostat is sufficient for controlling the temperature.
2 Wire Thermostat Wiring Diagram

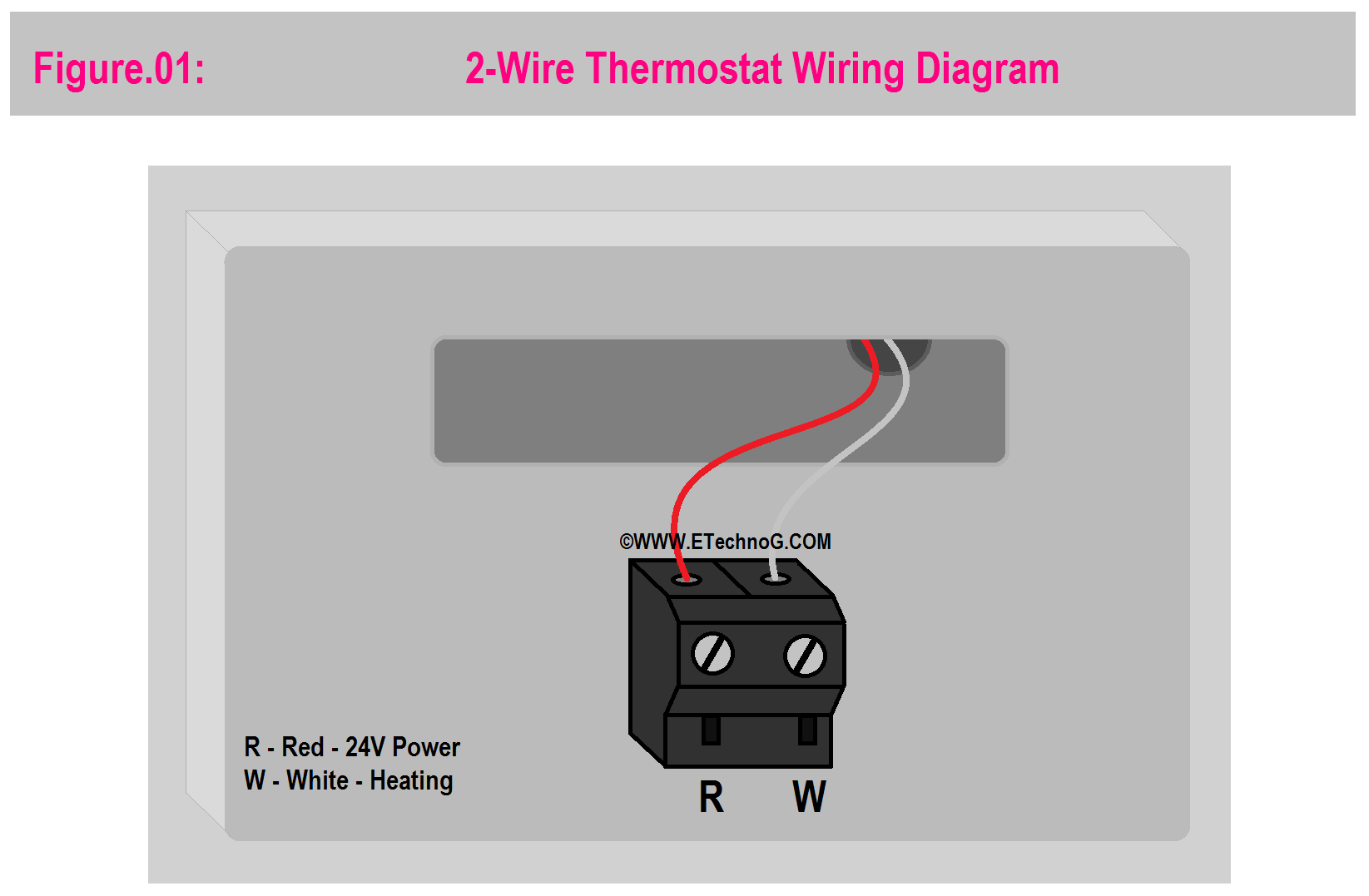

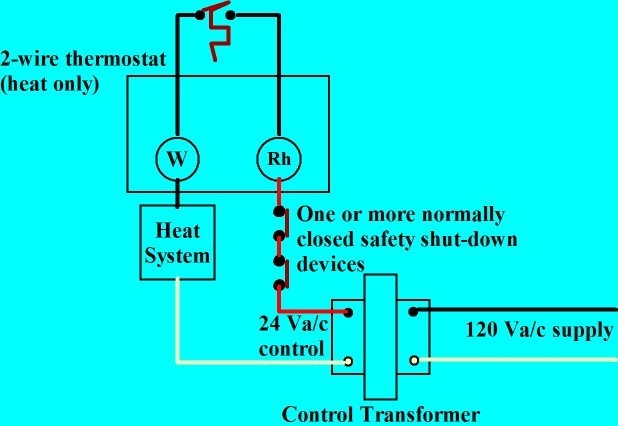

When wiring a 2 wire thermostat, the two wires are usually labeled “R” and “W”. The “R” wire is the power wire that provides a constant flow of electricity to the thermostat, while the “W” wire is the heating wire that signals the furnace to turn on when the temperature drops below the set point. By connecting these two wires correctly, you can ensure that your heating system operates efficiently.
To begin the wiring process, start by turning off the power to your heating system. Then, locate the control panel of your thermostat and remove the cover to access the wiring terminals. Connect the “R” wire to the “R” terminal and the “W” wire to the “W” terminal, making sure to secure the wires in place with the appropriate screws. Once the wires are connected, replace the cover of the thermostat and turn the power back on to test the system.
It is important to double-check the wiring connections to ensure that they are secure and correctly aligned with the terminals. If you are unsure about the wiring process, it is recommended to consult a professional HVAC technician to assist you with the installation. By following the 2 wire thermostat wiring diagram and seeking professional help if needed, you can ensure that your thermostat functions properly and efficiently.
In conclusion, a 2 wire thermostat wiring diagram is a valuable tool for installing a thermostat in your home. By understanding the wiring connections and following the diagram carefully, you can ensure that your heating system operates efficiently and effectively. If you have any doubts or questions about the wiring process, do not hesitate to seek help from a professional to avoid any potential issues.
